Author Topic: Tachometer install on a LIKE200i  (Read 550 times)

Stig / Major Tom

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 14581
  • Rural Ohio
    • View Profile
Tachometer install on a LIKE200i
« on: December 05, 2018, 08:52:46 PM »

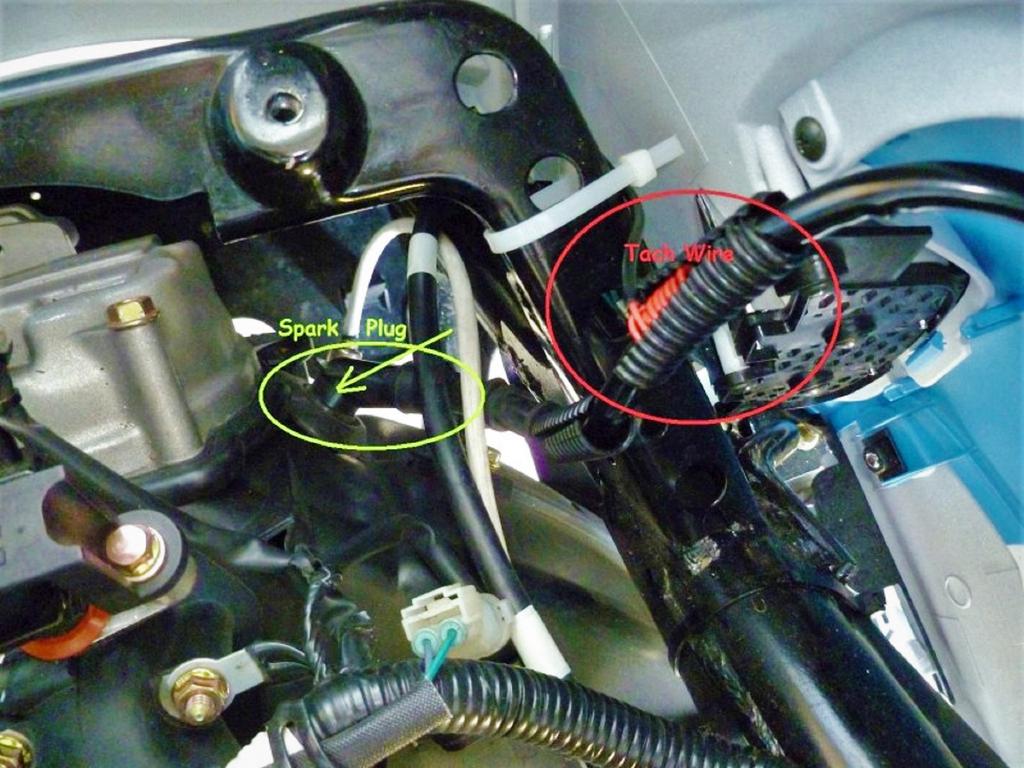

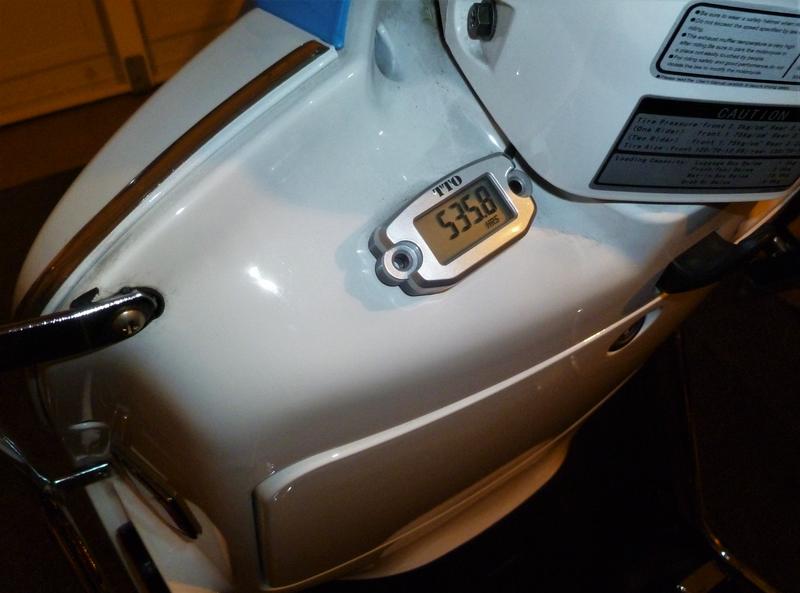

Simple installation - I used some 3M Red body panel tape to stick it below my head-set. It is in view while riding - but doesn't clutter the dash area. I routed the wire through the head-set opening next to the tach, down through and under the battery area to the spark plug lead, where I wrapped it several times and covered it with a cable cover.




Tach comes with a 6' sensing wire....but maybe do not cut it - use the extra length when wrapping around the spark plug/coil wire to get better readings?

Not sure how long the battery lasts - but mine has been on there for 535 hours of riding.
It will hold your top RPM's after a ride ("where was it when climbing that big hill at near WOT?")......and I like to take a look every now and then to see what the engine is turning at as I cruise country roads, or check your idle speed.
This is the one I used - there are plenty of others.
https://www.trailtech.net/tto


Stig
Boston Strong
Rural Ohio

And, I'm feeling a little peculiar.

CROSSBOLT

  • Hero Member
  • *****
  • Posts: 7755
  • West Tennessee, USA
    • View Profile
Re: Tachometer install on a LIKE200i
« Reply #1 on: December 05, 2018, 10:39:37 PM »
Very elegant installation!
Karl

Three motorcycles 1960-1977 (restored a 1955 BSA)
Agility 50
Yager 200i
Downtown 300i
Navy tech, Ships Engineer, pilot and aircraft mechanic

jeeves

  • Sr. Member
  • ****
  • Posts: 341
  • Dubrovnik, Croatia
    • View Profile
Re: Tachometer install on a LIKE200i
« Reply #2 on: December 08, 2018, 09:16:31 PM »
How can you know that it's accurate?
Is there a way to compare it with the actual rpm's the engine is spinning?

Sent from my Redmi 4 using Tapatalk

Agility City 125

Stig / Major Tom

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 14581
  • Rural Ohio
    • View Profile
Re: Tachometer install on a LIKE200i
« Reply #3 on: December 09, 2018, 04:43:28 AM »
How can you know that it's accurate?
Is there a way to compare it with the actual rpm's the engine is spinning?

Guess it is accurate enough for my needs.
The idle matches specs in the serv. & owner's manuals. So does the peak performance rev count.

Stig

Boston Strong
Rural Ohio

And, I'm feeling a little peculiar.
